IDS-108FPP – Switch PoE industriale
Switch PoE compatto da 8-10 porte per guida DIN

- 10/100Base-TX a 8 porte (RJ45)
- 10/100Base-TX a 8 porte (RJ45) con 1 o 2 porte per fibra SC/ST
- 4 porte PoE/PoE+PSE, completamente conformi a IEEE 802.3af/at
- Certificazione Hazardous Location e Industrial Control Equipment
- Custodia in alluminio IP30 resistente alla corrosione
- Alimentazione doppia ridondante a 24/48 V CC
- Protezione da sovraccarico di corrente e polarità inversa
- Supporto per temperature di funzionamento industriali da -40°C a 75°C
Gli switch Ethernet PoE di tipo industriale di Perle sono progettati per resistere alle temperature estreme, agli sbalzi, alle vibrazioni e agli scossoni tipici delle applicazioni di automazione industriale, governative, militari, petrolifere e del gas, estrattive e all'aperto.
Inoltre questi switch PoE sono classificati come Power Sourcing Equipment (PSE). Oltre a sfruttare cavi UTP standard che trasportano i dati tramite Ethernet, lo switch IDS-108FPP ha anche 4 porte che forniscono fino a 30 watt di alimentazione a Powered Devices (PD) come punti di accesso wireless, telefoni VoIP e videocamere IP. Ulteriori informazioni su PoE.
IDS-108FPP è uno switch Ethernet industriale dotato di 8 o 10 porte con alimentazione Power over Ethernet che fornisce prestazioni avanzate e consente operazioni deterministiche in rete in tempo reale. Non necessita di configurazione ed è immediatamente operativo non appena viene acceso.
IDS-108FPP are rugged fan-less switches that are hardened to provide superior reliability in 0 to 60°C, or harsh extended operating temperatures from -40 to 75°C. They come in a variety of models with 8 copper ports, 8 copper ports plus 1 fiber port or 8 copper ports plus 2 fiber ports.
IDS-108FPP è una serie di switch rinforzati e senza ventola resi più resistenti per garantire una maggiore affidabilità da 0°C a 60°C o temperature di funzionamento estese da -40°C a 75°C. Gli switch sono disponibili in una serie di modelli dotati di 8 porte per rame, 8 porte per rame e 1 porta per fibra o 8 porte per rame e 2 porte per fibra.
Perle progetta apparecchiature industriali per ambienti di conversione da ModBus seriale e da Profinet a Ethernet da oltre 35 anni e ha utilizzato la propria esperienza per la realizzazione degli switch Ethernet più resistenti sul mercato. Non affidare le tue comunicazioni critiche a switch commerciali. Gli switch Ethernet industriali di Perle ti assicurano che il tuo sistema rimarrà attivo negli anni.
Caratteristiche dello switch PoE industriale IDS-108FPP
Design rinforzato per condizioni ambientali difficili |
|
Funzionamento affidabile |
|
Prestazioni Ethernet in tempo reale |
|
Power | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Dual Power Input |
Both inputs draw power simultaneously. If one power source fails, the other live source can, acting as a backup, supply enough power to meet the operational needs of the switch. Flexible input voltage range : 24/48 VDC Nominal. (18 to 57 VDC) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Input Voltage Booster | Voltage boost technology supports 24V industrial power sources ensuring that a full and proper PSE voltage is available across all PoE ports | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Connector | 4-Pin Removable Terminal Block. Grounding screw on metal chassis |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Maximum Current Consumption @24 vDC |
.29 Amps (No PoE PDs attached) 5.6 Amps (4 x PoE+) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Maximum Power Consumption @24 vDC |
7 Watts (No PoE PDs attached) 134 Watts (4 x 30 Watts PoE+) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Overload Current Protection |
Reset-able fuse provides overload current protection | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Reverse polarity protection |
Protection is provided should inputs be reversed | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Access Ports | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RJ45 | 8 shielded RJ45 ports for 10/100Base-TX up to 100 meters (328 ft). 4 of these ports are PoE PSE capable Auto-negotiation Auto-MDI/MDIX-crossover for use with either crossover over straight-through cable types Ethernet isolation 1500 V |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE | 4 PoE/PoE+ ports Up to 30 Watts per port (@ switch RJ45) driving up to four class 4 (IEEE 802.3at Type 2) PDs |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Fiber port | 1 or 2 fixed fiber port models Duplex SC or ST connector
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Fixed Fiber Port Specs |
* 1db/km multimode fiber cable ** as per ITU-T G.652 SMF specifications |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Switch Properties | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Standards |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Processing Type | Store and Forward, non-blocking architecture | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MAC Address Table Size | 8K | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packet Buffer Memory | 1 Mbit | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Indicators | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
P1 | This green LED is turned on when power is applied to the power #1 input | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
P2 | This green LED is turned on when power is applied to the power #2 input | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RJ45 Ethernet | These integrated colored LEDs indicate link, activity and speed for each port. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Fiber Link | Fiber link LED indicates Link and Data Activity | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environmental Specifications | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature Ranges | Standard temperature models : 0° C to 60° C (32° F to 140° F). Industrial extended temperature models : -40° C to 75° C (-40 F to 167° F) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature Range | Minimum range of -25° C to 70° C (-13° F to 158° F). -40 C to 85 C (-40 F to 185 F) for industrial extended temperature models | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity Range | 5% to 90% non-condensing | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity Range | 5% to 95% non-condensing | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Altitude | Up to 3,048 meters (10,000 feet) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Chassis | Aluminum with an IP30 ingress protection rating | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Din Rail Mountable | DIN Rail attachment included. Mounts to standard 35 mm DIN rail in accordance with DIN EN 60175. Removable to accommodate optional Panel/Wall mount kit |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Maximum Heat Output | 24 BTU/Hr | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MTBF | 606,418 hours (without fiber module) 350,726 hours (with 1 fixed fiber module) 316,656 hours (with 2 fixed fiver modules) MTBF Calculation model based on MIL-HDBK-217-FN2 @ 30 °C |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

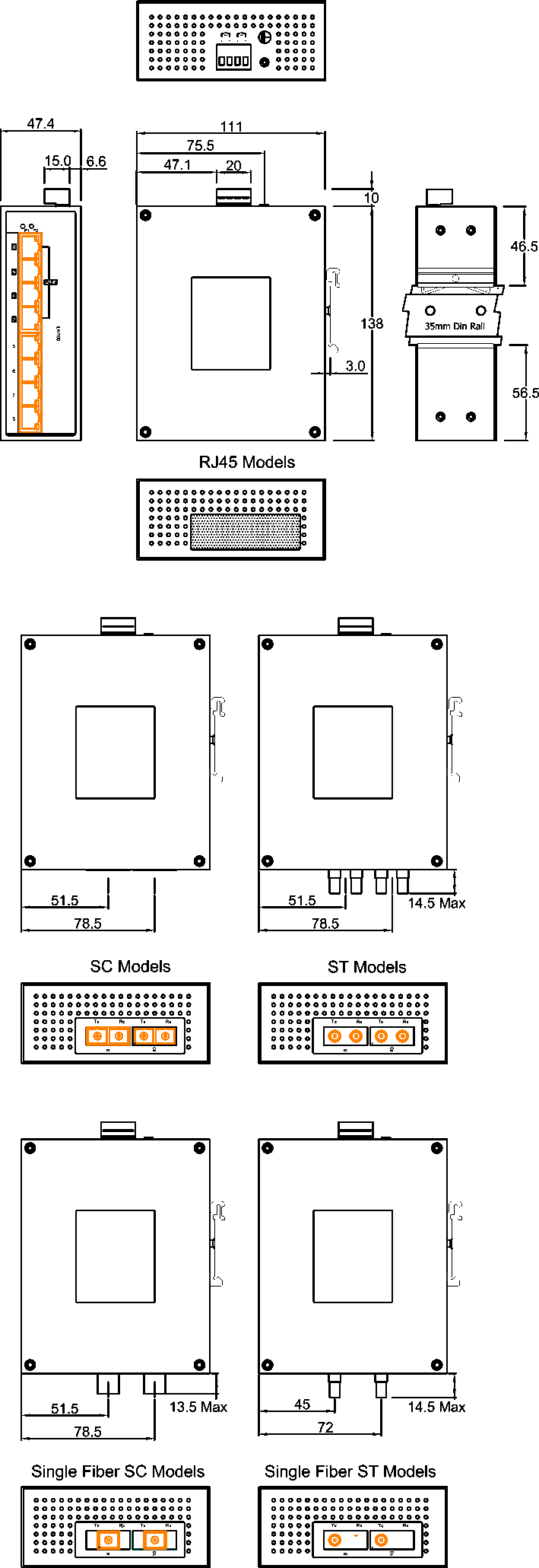

Product Weight and Dimensions | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight | 0.37 Kg, 0.82 lbs | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions | 111 x 138 x 47.4 mm, 4.37 x 5.43 x 1.87 inches | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Shipping Weight | 0.52 Kg, 1.15 lbs | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Shipping Dimensions | 170 x 260 x 70 mm, 6.69 x 10.24 x 2.76 inches | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Contents Shipped | Industrial Ethernet Switch with DIN Rail attachment Terminal block Installation guide |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Standards and Certifications | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Safety | UL/EN/IEC 62368-1 CAN/CSA C22.2 No. 62368-1 UL 60950-1 CSA C22.2 No. 60950-1 IEC 60950-1:2005+A1:2009 and EN 60950-1:2006+A11:2009+A1:2010+A12:2011 CE Mark UL508 (Industrial) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
EMC Emissions | FCC 47 Part 15 Class A CISPR 22:2008/EN55022:2010 (Class A) EN61000-6-4 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
EMC and Immunity | CISPR 24:2010/EN 55024:2010 IEC/EN 61000-4-2 (ESD) : Contact discharge +/- 4kV, Air Discharge +/- 8kV IEC/EN 61000-4-3 (RS) : 10V/m IEC/EN 61000-4-4 (EFT) : DC power line +/- 2 kV, Data Line +/- 1kV IEC/EN 61000-4-5 (Surge) : DC power line, Line/Line +/- 0.5kV, Line/Earth +/- 0.5kV, Data Line line/earth +/- 1kV IEC/EN 61000-4-6 (CS) : 150kHz to 80 MHz; 10V IEC/EN 61000-4-8 : 30A/m IEC/EN 61000-6-2 (General Immunity in Industrial Environments) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Industrial Safety | UL508 (Safety standard for Industrial Control Equipment) CSA C22.2 No. 142 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Hazardous Locations (Hazloc) |
ANSI/ISA 12.12.01, Class I Division 2 Groups A-D (formerly known as UL 1604) CSA C22.2 No. 213 ATEX Class I Zone 2, EN60079-0, 15 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Laser Safety | EN 60825-1 Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environmental | Reach, RoHS and WEEE Compliant | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Other | ECCN: 5A991 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HTSUS Number: 8517.62.0020 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5 year warranty |
IDS-108FPP - Diagramma dello switch Power over Ethernet ( PoE ) industriale |
---|
![]() |
Modalità singola / Fibra a fascio singolo ( WDM ) |
Connessione di dispositivi su un unico fascio di fibra (anche nota come connessione "bidirezionale", BiDi o Simplex) Per ridurre i costi o nei casi in cui la fibra disponibile è limitata, è possibile utilizzare la tecnologia Wavelength-Division Multiplexing (WDM). Questa sequenza utilizza frequenze di trasmissione e di ricezione diverse per comunicare su un unico fascio di fibra. Questa tecnologia sfrutta il fatto che la fibra ottica è in grado di trasmettere fasci di luce a diverse lunghezze d'onda simultaneamente, senza che queste interagiscano tra loro. In questo modo, una fibra singola è in grado di trasportare diversi segnali o canali su lunghezze d'onda differenti simultaneamente. I sistemi WDM sono suddivisi secondo diversi modelli di lunghezza d'onda: convenzionale (CWDM) e densa (DWDM). ![]() Quindi, se si utilizzano cavi in fibra single strand, è necessario installare un media converter di tipo "Up" a un'estremità e un media converter di tipo "Down" all'altra per garantire la conversione da rame a fibra. Perle offre un'ampia varietà di Switch Ethernet e Media Converter ("Up/Down") a fibra singola per l'utilizzo con un unico fascio di fibra. |
Standard Models
Vai ai modelli XTSelect a Model to obtain a Part Number – IDS-108FPP
Operating Temperature (Std) = 0° C to 60° C (32° F to 140° F)
Models with 8 x 10/100/1000Base-T (RJ45) Connectors |
||||||||||
---|---|---|---|---|---|---|---|---|---|---|
Model |
Choose your Fiber Connections from the table below
100Base-X Duplex Fiber |
|||||||||
Fiber
Connector |
Transmit
(dBm) |
Receive
(dBm) |
Power
Budget (dB) |
Wavelength
(nm) |
Fiber
Type |
Operating
Distance |
||||
Min |
Max |
Min |
Max |
|||||||
IDS-108FPP | NO Fiber Connection |
|||||||||
IDS-108FPP-M2SC2 | 1 x Duplex SC | -20.0 | -12.0 | -31.0 | -14.0 | 11.0* | 1310 | MMF |
5 km* (3.1 mi) |
|
IDS-108FPP-M2ST2 | 1 x Duplex ST | -20.0 | -12.0 | -31.0 | -14.0 | 11.0* | 1310 | MMF |
5 km* (3.1 mi) |
|
IDS-108FPP-S2SC20 | 1 x Duplex SC | -18.0 | -7.0 | -32.0 | -3.0 | 14.0 | 1310 | SMF |
20 km (12.4 mi) |
|
IDS-108FPP-S2ST20 | 1 x Duplex ST | -18.0 | -7.0 | -32.0 | -3.0 | 14.0 | 1310 | SMF |
20 km (12.4 mi) |
|
IDS-108FPP-S2SC40 | 1 x Duplex SC | -5.0 | 0.0 | -34.0 | -3.0 | 29.0 | 1310 | SMF |
40 km (25 mi) |
|
IDS-108FPP-S2ST40 | 1 x Duplex ST | -5.0 | 0.0 | -34.0 | -3.0 | 29.0 | 1310 | SMF |
40 km (25 mi) |
|
IDS-108FPP-S2SC80 | 1 x Duplex SC | -5.0 | 0.0 | -34.0 | -3.0 | 29.0 | 1550 | SMF |
80 km (50 mi) |
|
IDS-108FPP-S2ST80 | 1 x Duplex ST | -5.0 | 0.0 | -34.0 | -3.0 | 29.0 | 1550 | SMF |
80 km (50 mi) |
|
IDS-108FPP-S2SC120 | 1 x Duplex SC | 0.0 | 5.0 | -35.0 | -3.0 | 35.0 | 1550 | SMF |
120 km (75 mi) |
|
IDS-108FPP-S2ST120 | 1 x Duplex ST | 0.0 | 5.0 | -35.0 | -3.0 | 35.0 | 1550 | SMF |
120 km (75 mi) |
|
IDS-108FPP-DM2SC2 | 2 x Duplex SC | -20.0 | -12.0 | -31.0 | 14.0 | 11.0* | 1310 | MMF |
2 km (1.2 mi) |
|
IDS-108FPP-DM2ST2 | 2 x Duplex ST | -20.0 | -12.0 | -31.0 | 14.0 | 11.0* | 1310 | MMF |
2 km (1.2 mi) |
|
IDS-108FPP-DS2SC20 | 2 x Duplex SC | -18.0 | -7.0 | -32.0 | -3.0 | 14.0 | 1310 | SMF |
20 km (12.4 mi) |
|
IDS-108FPP-DS2ST20 | 2 x Duplex ST | -18.0 | -7.0 | -32.0 | -3.0 | 14.0 | 1310 | SMF |
20 km (12.4 mi) |
|
IDS-108FPP-DS2SC40 | 2 x Duplex SC | -5.0 | 0.0 | -34.0 | -3.0 | 29.0 | 1310 | SMF |
40 km (25 mi) |
|
IDS-108FPP-DS2ST40 | 2 x Duplex ST | -5.0 | 0.0 | -34.0 | -3.0 | 29.0 | 1310 | SMF |
40 km (25 mi) |
|
IDS-108FPP-DS2SC80 | 2 x Duplex SC | -5.0 | 0.0 | -34.0 | -3.0 | 29.0 | 1550 | SMF |
80 km (50 mi) |
|
IDS-108FPP-DS2ST80 | 2 x Duplex ST | -5.0 | 0.0 | -34.0 | -3.0 | 29.0 | 1550 | SMF |
80 km (50 mi) |
|
IDS-108FPP-DS2SC120 | 2 x Duplex SC | 0.0 | 5.0 | -35.0 | -3.0 | 35.0 | 1550 | SMF |
120 km (75 mi) |
|
IDS-108FPP-DS2ST120 | 2 x Duplex ST | 0.0 | 5.0 | -35.0 | -3.0 | 35.0 | 1550 | SMF |
120 km (75 mi) |
* 1db/km multimode 50/125 micron fiber cable
Single Fiber (Simplex / BiDi) Models Recommended use in pairs
Models with 8 x 10/100/1000Base-T (RJ45) Connectors |
||||||||||
---|---|---|---|---|---|---|---|---|---|---|
Model |
Choose your Fiber Connections from the table below
100Base-X Simplex (BiDi) Fiber |
|||||||||
Fiber
Connector |
Transmit
(dBm) |
Receive
(dBm) |
Power
Budget (dB) |
Wavelength
(nm) TX / RX |
Fiber
Type |
Operating
Distance |
||||
Min |
Max |
Min |
Max |
|||||||
IDS-108FPP-M1SC2U | 1 x Simplex SC | -15.0 | 0.0 | -28.0 | -8.0 | 13.0 | 1310 / 1550 | MMF |
2 km (1.2 mi) |
|
IDS-108FPP-M1SC2D | 1 x Simplex SC | -15.0 | 0.0 | -28.0 | -8.0 | 13.0 | 1550 / 1310 | MMF |
2 km (1.2 mi) |
|
IDS-108FPP-M1ST2U | 1 x Simplex ST | -15.0 | 0.0 | -28.0 | -8.0 | 13.0 | 1310 / 1550 | MMF |
5 km (3.1 mi) |
|
IDS-108FPP-M1ST2D | 1 x Simplex ST | -15.0 | 0.0 | -28.0 | -8.0 | 13.0 | 1550 / 1310 | MMF |
5 km (3.1 mi) |
|
IDS-108FPP-DM1ST2U | 2 x Simplex ST | -15.0 | 0.0 | -28.0 | -8.0 | 13.0 | 1310 / 1550 | MMF |
5 km (3.1 mi) |
|
IDS-108FPP-DM1ST2D | 2 x Simplex ST | -15.0 | 0.0 | -28.0 | -8.0 | 13.0 | 1550 / 1310 | MMF |
5 km (3.1 mi) |
|
IDS-108FPP-S1ST20U | 1 x Simplex ST | -14.0 | -8.0 | -32.0 | -3.0 | 18.0 | 1310 / 1550 | SMF |
20 km (12.4 mi) |
|
IDS-108FPP-S1ST20D | 1 x Simplex ST | -14.0 | -8.0 | -32.0 | -3.0 | 18.0 | 1550 / 1310 | SMF |
20 km (12.4 mi) |
|
IDS-108FPP-DS1ST20U | 2 x Simplex ST | -14.0 | -8.0 | -32.0 | -3.0 | 18.0 | 1310 / 1550 | SMF |
20 km (12.4 mi) |
|
IDS-108FPP-DS1ST20D | 2 x Simplex ST | -14.0 | -8.0 | -32.0 | -3.0 | 18.0 | 1550 / 1310 | SMF |
20 km (12.4 mi) |
|
IDS-108FPP-S1SC20U | 1 x Simplex SC | -14.0 | -8.0 | -32.0 | -3.0 | 18.0 | 1310 / 1550 | SMF |
20 km (12.4 mi) |
|
IDS-108FPP-S1SC20D | 1 x Simplex SC | -14.0 | -8.0 | -32.0 | -3.0 | 18.0 | 1550 / 1310 | SMF |
20 km (12.4 mi) |
|
IDS-108FPP-S1SC40U | 1 x Simplex SC | -8.0 | -3.0 | -33.0 | -3.0 | 25.0 | 1310 / 1550 | SMF |
40 km (25 mi) |
|
IDS-108FPP-S1SC40D | 1 x Simplex SC | -8.0 | -3.0 | -33.0 | -3.0 | 25.0 | 1550 / 1310 | SMF |
40 km (25 mi) |
|
IDS-108FPP-DM1SC2U | 2 x Simplex SC | -15.0 | 0.0 | -28.0 | -8.0 | 13.0 | 1310 / 1550 | MMF |
2 km (1.2 mi) |
|
IDS-108FPP-DM1SC2D | 2 x Simplex SC | -15.0 | 0.0 | -28.0 | -8.0 | 13.0 | 1550 / 1310 | MMF |
2 km (1.2 mi) |
|
IDS-108FPP-DS1SC20U | 2 x Simplex SC | -14.0 | -8.0 | -32.0 | -3.0 | 18.0 | 1310 / 1550 | SMF |
20 km (12.4 mi) |
|
IDS-108FPP-DS1SC20D | 2 x Simplex SC | -14.0 | -8.0 | -32.0 | -3.0 | 18.0 | 1550 / 1310 | SMF |
20 km (12.4 mi) |
|
IDS-108FPP-DS1SC40U | 2 x Simplex SC | -8.0 | -3.0 | -33.0 | -3.0 | 25.0 | 1310 / 1550 | SMF |
40 km (25 mi) |
|
IDS-108FPP-DS1SC40D | 2 x Simplex SC | -8.0 | -3.0 | -33.0 | -3.0 | 25.0 | 1550 / 1310 | SMF |
40 km (25 mi) |
Industrial Ethernet Switch Accessories | |
---|---|
Panel Mount kit PM3 | Brackets for attaching 30 to 40mm wide Perle IDS industrial switches inside a control panel or to a wall. |
Rack Mount Kit RM4U | Bracket for mounting one or more Perle DIN Rail switches in a standard 19” rack. Occupies “4U” of vertical rack space. 275 mm (10 inches) deep |
TRIO-PS/1AC/48DC/5 Power Supply | TRIO-PS/1AC/48DC/5 DIN-Rail Power Supply: 48 VDC, 240 Watt with universal 85 to 264 VAC, 30 to 56V DC output range adjustable, -25 to 70°C extended operating temperature. Power Supply Specifications. |
TRIO-PS/1AC/48DC/10 Power Supply | TRIO-PS/1AC/48DC/10 Power Supply - DIN-Rail 48 VDC , 480 Watt power supply with universal 85 to 264 VAC, 30 to 56V DC output range adjustable, -25 to 70°C extended operating temperature. Power Supply Specifications. |
UNO-PS/1AC/24DC/150W Power Supply | UNO-PS/1AC/24DC/150W Power Supply - DIN-Rail 24 VDC , 150 Watt power supply with universal 85 to 264 VAC, -25 to 70°C extended operating temperature. Power Supply Specifications. |
XT Models
Torna allo standardSelect a Model to obtain a Part Number – IDS-108FPP
Operating Temperature (Ind) = -40° C to 75° C (-40 F to 167° F)
Models with 8 x 10/100/1000Base-T (RJ45) Connectors |
||||||||||
---|---|---|---|---|---|---|---|---|---|---|
Model |
Choose your Fiber Connections from the table below
100Base-X Duplex Fiber |
|||||||||
Fiber
Connector |
Transmit
(dBm) |
Receive
(dBm) |
Power
Budget (dB) |
Wavelength
(nm) |
Fiber
Type |
Operating
Distance |
||||
Min |
Max |
Min |
Max |
|||||||
IDS-108FPP-XT | NO Fiber Connection |
|||||||||
IDS-108FPP-M2SC2-XT | 1 x Duplex SC | -20.0 | -12.0 | -31.0 | -14.0 | 11.0* | 1310 | MMF |
5 km* (3.1 mi) |
|
IDS-108FPP-M2ST2-XT | 1 x Duplex ST | -20.0 | -12.0 | -30.0 | -14.0 | 10.0* | 1310 | MMF |
5 km* (3.1 mi) |
|
IDS-108FPP-S2SC20-XT | 1 x Duplex SC | -18.0 | -7.0 | -32.0 | -3.0 | 14.0 | 1310 | SMF |
20 km (12.4 mi) |
|
IDS-108FPP-S2ST20-XT | 1 x Duplex ST | -18.0 | -7.0 | -32.0 | -3.0 | 14.0 | 1310 | SMF |
20 km (12.4 mi) |
|
IDS-108FPP-S2SC40-XT | 1 x Duplex SC | -5.0 | 0.0 | -34.0 | -3.0 | 29.0 | 1310 | SMF |
40 km (25 mi) |
|
IDS-108FPP-S2ST40-XT | 1 x Duplex ST | -5.0 | 0.0 | -34.0 | -3.0 | 29.0 | 1310 | SMF |
40 km (25 mi) |
|
IDS-108FPP-DM2SC2-XT | 2 x Duplex SC | -20.0 | -12.0 | -31.0 | 14.0 | 11.0* | 1310 | MMF |
2 km (1.2 mi) |
|
IDS-108FPP-DM2ST2-XT | 2 x Duplex ST | -20.0 | -12.0 | -30.0 | 14.0 | 10.0* | 1310 | MMF |
2 km (1.2 mi) |
|
IDS-108FPP-DS2SC20-XT | 2 x Duplex SC | -18.0 | -7.0 | -32.0 | -3.0 | 14.0 | 1310 | SMF |
20 km (12.4 mi) |
|
IDS-108FPP-DS2ST20-XT | 2 x Duplex ST | -18.0 | -7.0 | -32.0 | -3.0 | 14.0 | 1310 | SMF |
20 km (12.4 mi) |
|
IDS-108FPP-DS2SC40-XT | 2 x Duplex SC | -5.0 | 0.0 | -34.0 | -3.0 | 29.0 | 1310 | SMF |
40 km (25 mi) |
|
IDS-108FPP-DS2ST40-XT | 2 x Duplex ST | -5.0 | 0.0 | -34.0 | -3.0 | 29.0 | 1310 | SMF |
40 km (25 mi) |
* 1db/km multimode 50/125 micron fiber cable
Single Fiber (Simplex / BiDi) Models Recommended use in pairs
Models with 8 x 10/100/1000Base-T (RJ45) Connectors |
||||||||||
---|---|---|---|---|---|---|---|---|---|---|
Model |
Choose your Fiber Connections from the table below
100Base-X Simplex (BiDi) Fiber |
|||||||||
Fiber
Connector |
Transmit
(dBm) |
Receive
(dBm) |
Power
Budget (dB) |
Wavelength
(nm) TX / RX |
Fiber
Type |
Operating
Distance |
||||
Min |
Max |
Min |
Max |
|||||||
IDS-108FPP-S1SC20U-XT | 1 x Simplex SC | -14.0 | -8.0 | -32.0 | -3.0 | 18.0 | 1310 / 1550 | SMF |
20 km (12.4 mi) |
|
IDS-108FPP-S1SC20D-XT | 1 x Simplex SC | -14.0 | -8.0 | -32.0 | -3.0 | 18.0 | 1550 / 1310 | SMF |
20 km (12.4 mi) |
|
IDS-108FPP-DS1SC20U-XT | 2 x Simplex SC | -14.0 | -8.0 | -32.0 | -3.0 | 18.0 | 1310 / 1550 | SMF |
20 km (12.4 mi) |
|
IDS-108FPP-DS1SC20D-XT | 2 x Simplex SC | -14.0 | -8.0 | -32.0 | -3.0 | 18.0 | 1550 / 1310 | SMF |
20 km (12.4 mi) |
Industrial Ethernet Switch Accessories | |
---|---|
Panel Mount kit PM3 | Brackets for attaching 30 to 40mm wide Perle IDS industrial switches inside a control panel or to a wall. |
Rack Mount Kit RM4U | Bracket for mounting one or more Perle DIN Rail switches in a standard 19” rack. Occupies “4U” of vertical rack space. 275 mm (10 inches) deep |
TRIO-PS/1AC/48DC/5 Power Supply | TRIO-PS/1AC/48DC/5 DIN-Rail Power Supply: 48 VDC, 240 Watt with universal 85 to 264 VAC, 30 to 56V DC output range adjustable, -25 to 70°C extended operating temperature. Power Supply Specifications. |
TRIO-PS/1AC/48DC/10 Power Supply | TRIO-PS/1AC/48DC/10 Power Supply - DIN-Rail 48 VDC , 480 Watt power supply with universal 85 to 264 VAC, 30 to 56V DC output range adjustable, -25 to 70°C extended operating temperature. Power Supply Specifications. |
UNO-PS/1AC/24DC/150W Power Supply | UNO-PS/1AC/24DC/150W Power Supply - DIN-Rail 24 VDC , 150 Watt power supply with universal 85 to 264 VAC, -25 to 70°C extended operating temperature. Power Supply Specifications. |
